Pyxis Battery Pack
| 5450061 | |
| 5450061-2 | |
| Ultrasound | |
| LOGIQ S8 | |
| GE Healthcare | Outright |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- High energy density
- UL2054, IEC62133, FCC and UN38.3 certified
- Flammability rating UL 94V-0
- Communication interface for status identification
Product Overview

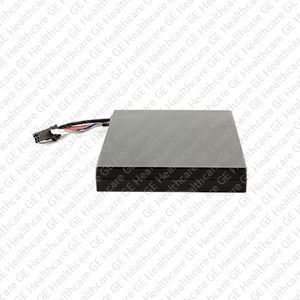

The Pyxis Battery Pack is a component that is used in Medical diagnostic ultrasound imaging equipment, which uses this battery pack as a backup power source. The lithium-ion battery provides power when the AC power source is interrupted. Lithium-ion batteries last longer than conventional batteries and do not require replacement as often. The lithium-ion technology used is significantly less hazardous to the environment than the lithium metal technology used in some other batteries (such as watch batteries). This particular battery comes along with the protection circuit for detecting function of overcharge, over discharge and over voltage and thermal protection circuits as well as a SMBus for communication. This serial bus helps to read the set of battery parameters in a regular interval as part of maintenance. A thermistor present in the pack helps to ensure thermal protection, its resistance gradually varies in terms of change in temperature. The battery pack is capable of continuous charging at 14.4V and a 6000mA maximum current and it is capable of continues discharge at 12V, 20 Amp (max). It includes a polyethylene terephthalate (White) material label on top for easy identification as well to add regulatory markings.
Compatible Products
LOGIQ S8
Voluson S6
Voluson S8
Substitute Parts :
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 5450061-2 | Polaris-Maru Battery Pack |
