PCB Tuffsat Flex Circuit
| 2058604-001 | |
| 6050-0005-566 | |
| Patient Monitoring | |
| GE HealthCare | Outright |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Highly reliable interface
- Long cycle life contacts
- Excellent chemical resistance
- Good UV radiation resistance
Product Overview

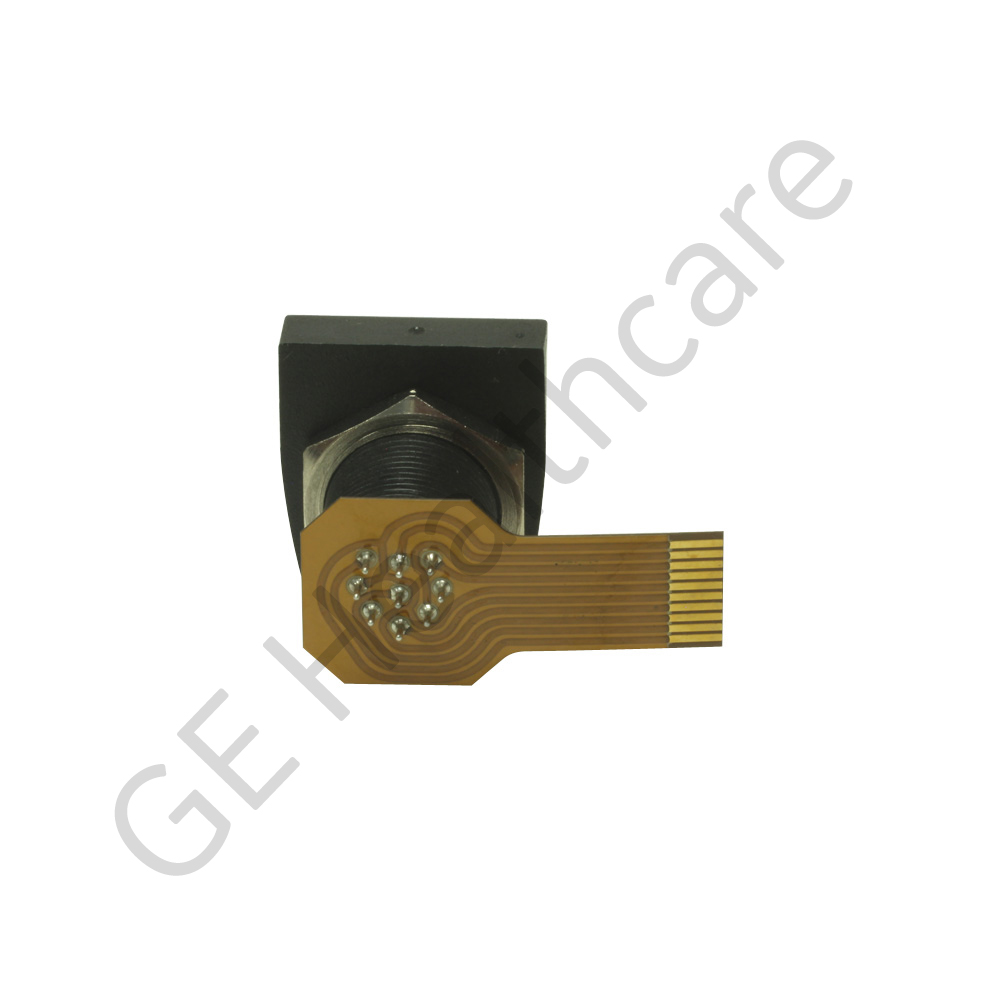

The PCB Tuffsat Flex Circuit is a custom designed flex probe socket assembly for the Tuffsat pulse oximeter. It is used to interface the TruSignal™ interconnect cable to the probe socket connector in-order to measure SpO₂ during clinical motion and low perfusion through a sensor probe assembly which attached to the finger of the patient. The connector assembly is comprised of a probe socket housing, 9 female contacts, a flex Printed Circuit Board (PCB), M15 x 1 hexagonal nut and SPCR probe socket. The probe socket is made up of an ABS (Acrylonitrile Butadiene and Styrene) plastic material that provided ideal characteristics for this product. The flex PCB is made up of high quality polyimide with silkscreen coated on the top side and bottom circuitry from a reliable electrical wire circuit, having excellent chemical, radiation and corona resistance property which makes it well suited for medical applications.
Compatible Products
TuffSat Pulse Oximeter
Substitute Parts :
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 6050-0005-566 | PCA 3000 FLEX PROBE ASSY |
