![Port ACGO Breathing Circuit Gas Port ACGO Breathing Circuit Gas](/medias/1406-3249-000-001.jpg?context=bWFzdGVyfGltYWdlc3wxMzYzNzl8aW1hZ2UvanBlZ3xhVzFoWjJWekwyaGxOaTlvTXpndk9EZzFPVGt4TkRBeE1EWTFOQzVxY0djfDlkZjA2NGNhODAzYjlmOWU0OGMwNTFkZmZjZDhhZGQwNzVjN2M1MDZkNzM1ZjFlYmE0YjAyYjZjNDE0Yjk3NzY)

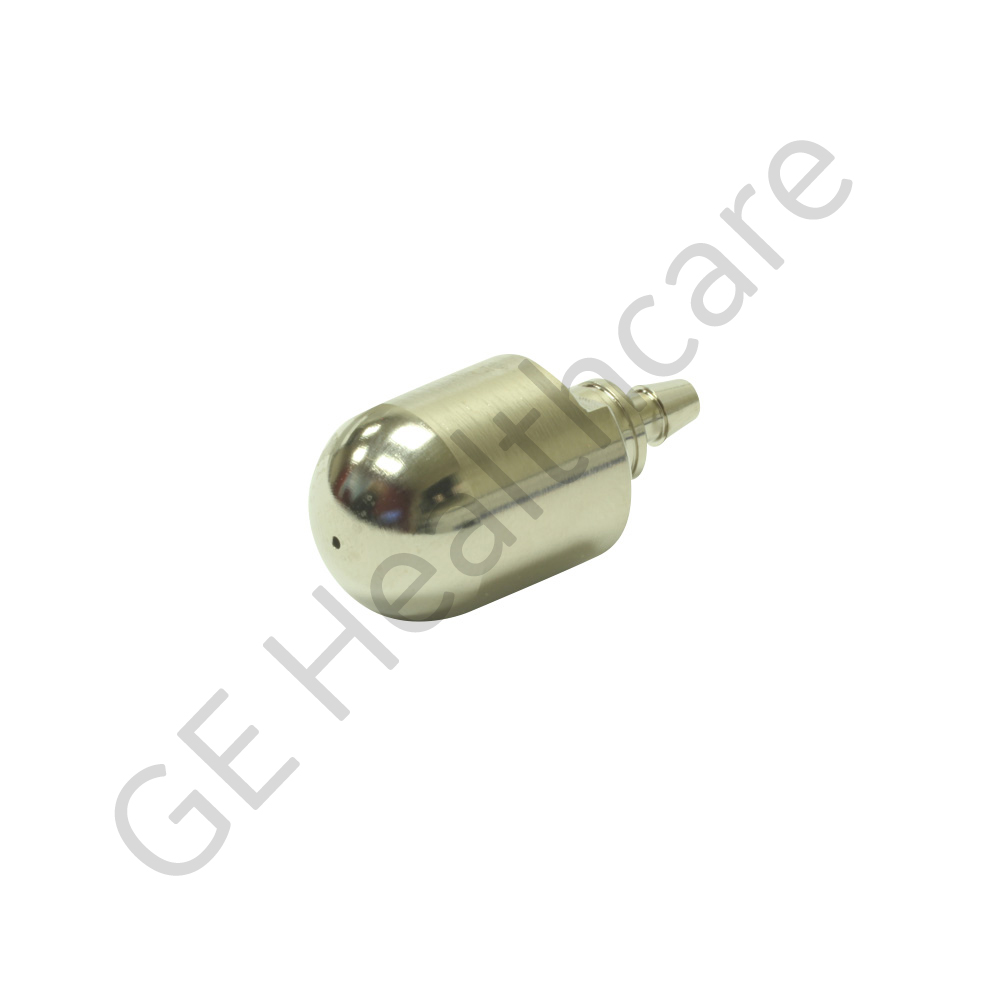

Port ACGO Breathing Circuit Gas
1406-3249-000 | |
Anesthesia Delivery | |
GE HealthCare | Outright |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Follows ISO 1458:2002 metallic coatings standards
- Port does not contain oil, grease, dust, dirt, lint, rust or chips
- High strength and corrosion resistance
- Enhanced wear resistance due to nickel electroplating
Product Overview
The Auxiliary Common Gas Outlet (ACGO) port is used to provide fresh gas to an auxiliary manual breathing circuit. It comes under the Breathing Gas Circuit (BGC) manifold in an anesthesia delivery system with an integrated breathing system. ACGO switch directs the fresh gas flow through the ACGO port on the front of the system. Oxygen concentration is displayed on the screen when the ventilator is set to ACGO mode. A relief valve in the manifold limits the fresh gas pressure at the ACGO port to 55 kPa (8 psi) at 45 l/min. ACGO provides a flexible breathing circuit in addition to existing, for specific medical functioning. The port is made of brass which is highly corrosion resistant. An electrodeposited nickel coating on a copper-base alloy substrate is applied on the port gives bright appearance. Finishing contains less than 0.1% by weight in homogenous material for lead, mercury, and hexavalent chromium and less than 0.01% by weight in homogenous material for cadmium.
Compatible Products
![Aestiva WU_0042 Aestiva WU_0042](/gehcstorefront/_ui/desktop/theme-green/images/missing-product-new-2024-300x300.jpg)
Aestiva WU_0042
